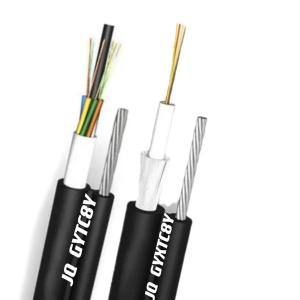

GYXTC8Y GYTC8Y Outdoor Aerial Self-supporting Figure 8 Unarmored Fiber Optic Cable

Brand Name : JQ/OEM

Model Number : GYXTC8Y GYTC8Y

Certification : CE/ISO9001

Place of Origin : Guangdong, China

MOQ : 1 Kilometer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8000 kilometers per month

Delivery Time : 2-5days

Packaging Details : Wooden Drum

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Fiber type : G652D Single mode or as your request

Length : as required

Color : Customized

Loose tube : PBT

Jacket : PE,MDPE,LSZH,PVC

Package : Wooden Drum/Customized

Application : Aerial,Overhead

Oem : Available

Contact Now

Product Description

#The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. High strength loose tube that is hydrolysis resistant. GYXTC8Y The optical fiber unit is positioned the center.Then the cable is completed with a black or color LSZH sheath.APL moisture barrier,finally extrusion PE sheathed cable.
#The 250μm fiber is placed in a loose tube made of a high modulus material, which is filled with a waterproof compound. At the center of the cable core is a metal reinforcement core, around which the loose sleeve (and filler rope) is twisted to form a compact and rounded cable core, and the wire strand is integrated into an 8-figure polyethylene sheath. The steel wire strand has a high tensile strength, which is convenient for self-supporting overhead laying and reduces the installation cost.GYXTC8Y GYTC8Y Outdoor Aerial Self-supporting Figure 8 Unarmored Fiber Optic Cable

Characteristics:

1. Stainless steel or gaivanized steel self-supporting.
2. Excellet mechanical and environmental performance.
3. Good moisture-resistance.
4. Light weight, compact design, cheap price and wide application.

5.High strength loose tube that is hydrolysis resistant.
6.Special tube filling compound ensure a critical protection of fiber. 7.PE sheath enhancing moisture-proof. 8.Small diameter, light weight and friendly installation.
Application:
Apply for outdoor layout ways of overhead.
Long distance and local area network(LAN) communication.
Aerial & conduit/duct application.
Specification:
item value
Model Number GYXTC8Y / GYTC8Y
Type Outdoor Fiber Optic Cable
Product name outdoor distribution figure 8 armored fiber optic cable GYXTC8Y
Place of Origin Guangdong,China
Brand Name jiqian
Structure Uni-tube /multi loose tube
Number of Conductors ≥ 10
Fiber count 2-24Cores
Fiber Type G652D Single mode or as your request
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL
Optical Characteristics:
G.652 G.655 50/125μm 62.5/125μm
Attenuation '@850nm ≤3.0 dB/km
(+20℃) '@1300nm ≤1.0 dB/km
'@1310nm ≤0.34 dB/km ≤0.40 dB/km
'@1550nm ≤0.21 dB/km ≤0.23 dB/km
'@850nm ≥500 MHz·km
'@1300nm ≥1000 MHz·km
Numerical Aperture 0.200±0.015NA
Technical parameters:
Cable Diameter(mm) description package packing package cube net weight gross
(cbm) (kg) weight
(kg)
7.0*11.5 strength member wooden drum 1km 70*70*65CM 80 95
7*0.3mm steel wires 2km 80*80*65CM 160 170
4-12core 3km 90*90*75CM 240 270
4km 100*100*75CM 320 360
5km 110*110*75CM 400 465

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

GYXTC8Y GYTC8Y Outdoor Aerial Self-supporting Figure 8 Unarmored Fiber Optic CableGYXTC8Y GYTC8Y Outdoor Aerial Self-supporting Figure 8 Unarmored Fiber Optic Cable

WHY CHOOSE US:

GYXTC8Y GYTC8Y Outdoor Aerial Self-supporting Figure 8 Unarmored Fiber Optic Cable

Certification:

GYXTC8Y GYTC8Y Outdoor Aerial Self-supporting Figure 8 Unarmored Fiber Optic Cable

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.

G.65550/125μm62.5/125μm
G.652
Attenuation'@850nm

≤3.0 dB/km(+20℃)'@1300nm

≤1.0 dB/km
'@1310nm≤0.34 dB/km≤0.40 dB/km

'@1550nm≤0.21 dB/km≤0.23 dB/km

'@850nm

≥500 MHz·km
'@1300nm

≥1000 MHz·kmNumerical Aperture

0.200±0.015NA
